Blackhole

NVIDIA compute. Built for the field.

Blackhole puts NVIDIA computing into rugged hardware for vehicles, autonomous platforms and remote installations.

Blackhole GB10 finned enclosure and front connector panel.
Blackhole GB10 · Grace Blackwell

Blackhole configurations

Compact onboard processing or larger local AI workloads. Choose the compute platform around the work and the installation.

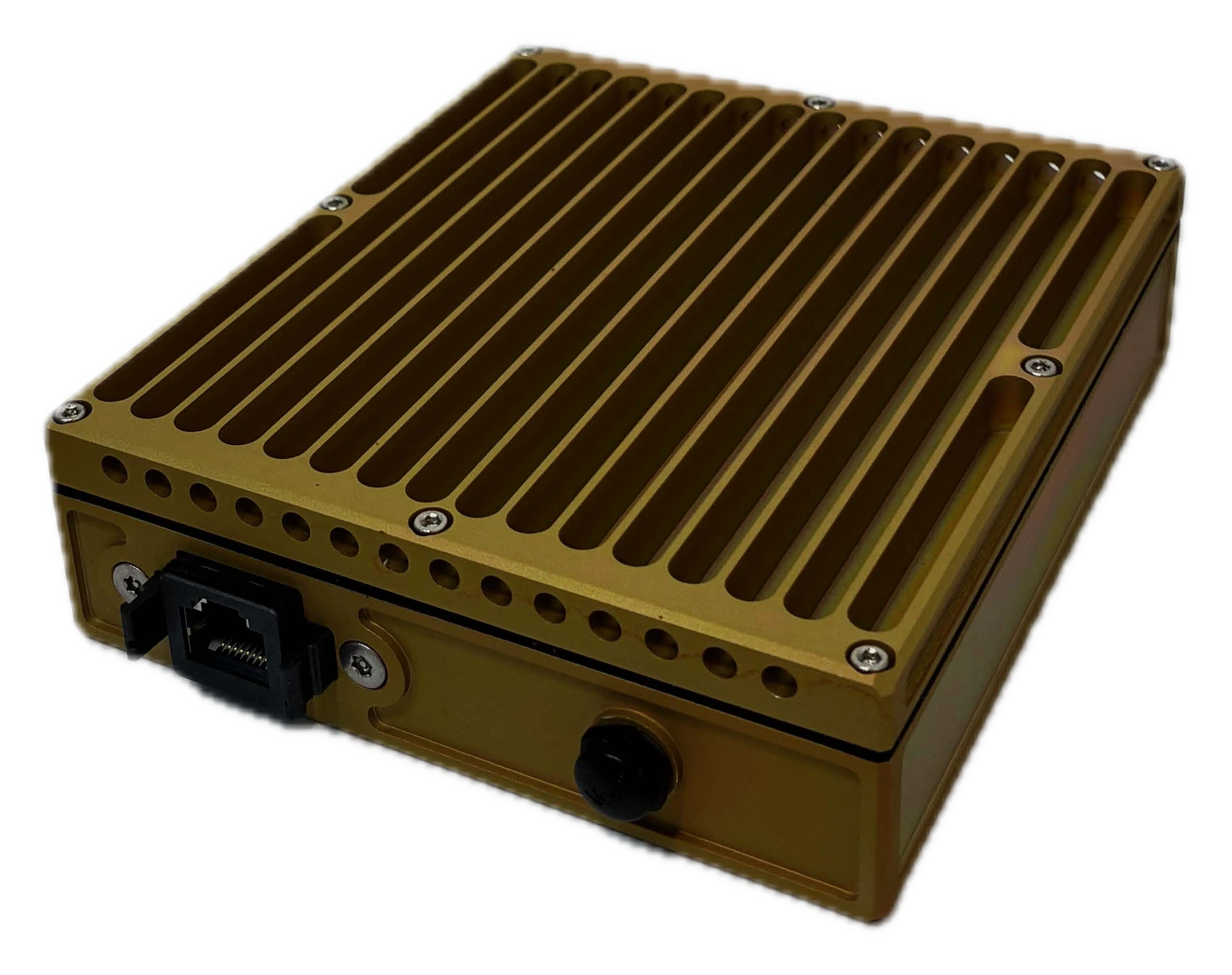

Blackhole Orin Nano finned lid, enclosure base and connectors.
Blackhole Orin Nano

NVIDIA Orin Nano Super

Compact computing for onboard processing, sensors and autonomy.

Weight
500 g
Power input · up to
25 WPoE++
Enclosure
120 × 120 × 40 mm
Orin specifications
Blackhole GB10 finned enclosure with its connector panel.
Blackhole GB10

GB10 Grace Blackwell

Grace Blackwell computing for local AI development and inference.

Weight
1,500 g
Power input · up to
280 WUSB-C PD
Enclosure
188 × 201 × 55 mm
GB10 specifications

Ruggedized construction

Blackhole Orin Nano enclosure with the finned heatsink lid.
Blackhole Orin Nano enclosure

Blackhole Orin Nano’s sealed housing conducts heat from the compute platform to its exterior, bringing protection and cooling into the same physical assembly.

Integrated thermal management

Orin Nano’s exterior fins increase the housing’s heat-transfer area. Blackhole GB10 combines its finned enclosure with internal blowers and a heat-exchanger assembly.

Integrated power and data

Custom power and data PCBs connect the compute platform, input power and interfaces inside the rugged assembly.

Serviceable interconnects

Mounting features and accessible connectors support installation and servicing.

Inside Blackhole

Blackhole Orin Nano

Blackhole Orin Nano exploded view with a single finned lid, Jetson compute assembly, carrier support and enclosure base.
Finned lid, Jetson compute assembly and carrier support above the enclosure base.

Blackhole GB10

Blackhole GB10 exploded view with a finned lid, two blowers and heat exchanger, compute board, chassis tray and base cover.
Finned enclosure, internal cooling, compute board, chassis tray and base cover.

GB10 interfaces

Blackhole GB10 port panel, from left to right: power button, four USB-C connectors, HDMI, 10GbE RJ45 and two QSFP cages.
Power button · USB-C ×4 · HDMI · 10GbE · QSFP ×2Confirm connector capabilities for your configuration. Enlarge port view

Specifications

Compute specifications

Compute specifications: Orin Nano and GB10 comparison
SpecificationNVIDIA Orin Nano SuperGB10 Grace Blackwell
CPU6-core Arm Cortex-A78AE20-core Arm · 10 Cortex-X925 + 10 Cortex-A725
GPUAmpere · 1,024 CUDA cores · 32 Tensor coresBlackwell
Memory8 GB LPDDR5 · 102 GB/s128 GB unified LPDDR5x
Peak AI computeUp to 67 INT8 TOPSUp to 1 PFLOP · sparse FP4
StoragemicroSD slot and NVMe SSD support2 TB M.2 2230 QLC PCIe Gen4 SSD

Blackhole hardware

Blackhole hardware: Orin Nano and GB10 comparison
SpecificationBlackhole Orin NanoBlackhole GB10
Dimensions120 × 120 × 40 mm188 × 201 × 55 mm
Weight500 g1,500 g
Power inputPoE++ · up to 25 WUSB-C Power Delivery · up to 280 W
ConstructionSealed housing with integrated heatsink; custom power and data PCBs.Finned enclosure with two internal blowers and a heat exchanger.
InterfacesEthernet / PoE, USB-C, fiber; optional M.2 wireless.USB-C ×4, HDMI, 10GbE RJ45, QSFP ×2.

Blackhole Orin Nano environmental ratings

Immersion
IP68 · 10 m for 30 minutes
Shock and vibration
MIL-STD-810H
Hot dry
MIL-STD-810H · Method 501.7
Cold
MIL-STD-810H · Method 502.7
Quantum Helix

Available with
Quantum Helix.

Choose Blackhole as a preconfigured Quantum Helix appliance, or use the hardware with another workload.

Quantum Helix provides workload identity and controlled connections between participating applications.

Explore Quantum Helix

Build it into
your system.

Tell us about your workload, power budget and installation. We’ll discuss the Blackhole configuration and qualification requirements that fit.

Discuss your integration
